Description
Price Includes Shipping

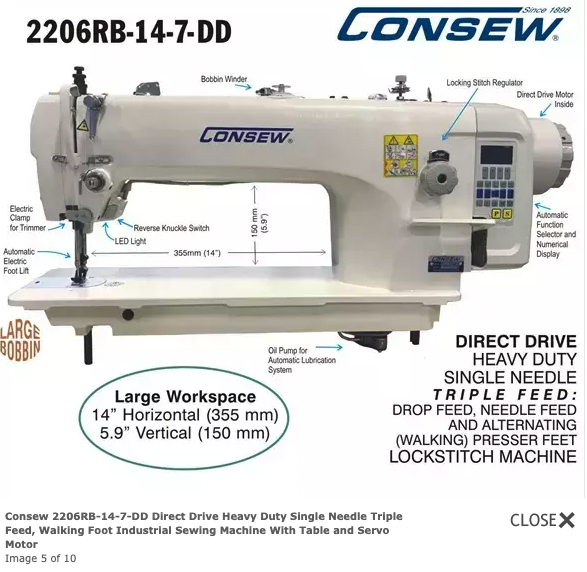

Direct Drive, Heavy Duty, Single Needle
TRIPLE FEED: Drop Feed, Needle Feed and Alternating (walking) Presser Feet, Lockstitch Machine
Featuring: Fully Automatic Functions with Display, Automatic Electric Foot Lift, Large Workspace, 14” Horizontal (355 mm) x 5.9” Vertical (150 mm), Automatic Lubrication System, Manual & Automatic Reverse With Knuckle Switch, Large Bobbin And Horizontal Axis Hook (side Load), 3 S.p.i.(8mm) Stitch Length, Locking Stitch Regulator, Standard Presser Feet Fittings
APPLICATIONS
- For sewing light to heavy-weight fabric, canvas, leather, vinyl, synthetics and various laminated and coated materials
- Designed for stitching such products as auto, boat and furniture upholstery, tarpaulins, covers, awnings, tents, handbags, luggage, sports and camping equipment, outdoor clothing, footwear, orthopedic appliances, ballistic armor, parachute containers, etc.
FEATURES
- Direct Drive Motor (no belt connection required)
- Fully automatic functions including automatic electric foot lift
- Automatic lubrication system
- Large bobbin and horizontal axis hook (side load)
- Compound feed, walking foot with alternating presser feet
- Built-in adjustment for changing step height between inside and outside presser feet
- New: Presser feet connecting rod which allows for presser feet to alternate more efficiently
- New: Top thread electric clamping system for trimming
- Built-in bobbin winder
- Locking stitch regulator
- Safety-type handwheel
- Stitch length indicator on outside of machine
- All sizes of cording feet available
- Standard presser feet fittings
- Standard attachments easily installed
ADDITIONAL INFORMATION
SPECIFICATIONS
| Speed, Max (S.P.M.) |
3000 |
| Clearance Under Presser Foot |
33/64″ (13 mm) |
| Stitch Length |
3 s.p.i. (8 mm) |
| Work Space |
14″ Horizontal (355 mm) x 5.9” Vertical (150 mm) |
| Needle |
135 x 17 |
| Bobbin |
Pre-Wound M |
| Stitch Type |
301 |
| Needle Bar Stroke |
|
| Hook |
